Debug report
Error messages
If error is related to specific entity, debug report contains detailed error message with handle of problematic entity.
Variables validation error - Error occurs in various situations when parsing variables. For example: wrong variable name, wrong variable type, undefined variable etc.

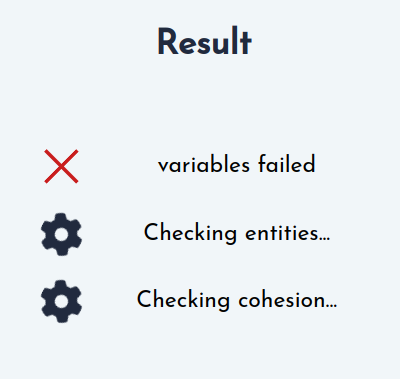

Variables error
Entities validation error - Error occurs when validating entities. For example: wrong entity type, wrong QCAD description, zero length line etc.

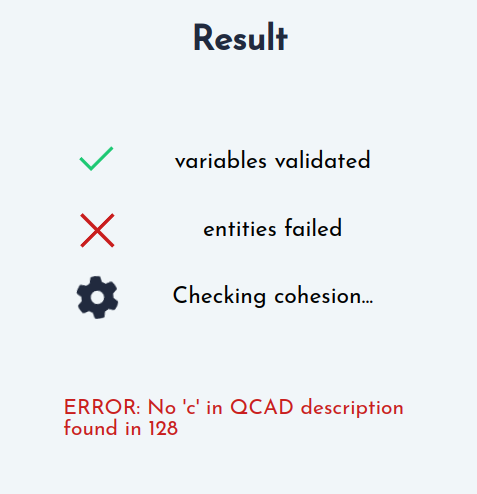

Entity error
Cohesion validation error - Error occurs when validating cohesion. By cohesion we mean that all entities are connected to each other. Either directly or indirectly using VIRTUAL_LAYER. It is crucial that all entities form one connected graph to be able to find relative position of all entities. For example: line parametrized with ‘?’ is not connected on both ends.

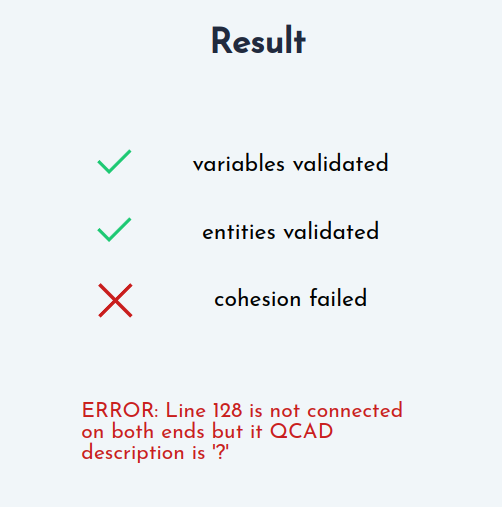

Cohesion error
Limit validation error - Error occurs when user exceeds his limit of entities. For example: user has limit of 100 entities and his drawing has 150 entities. In this case see Increase entities limit.

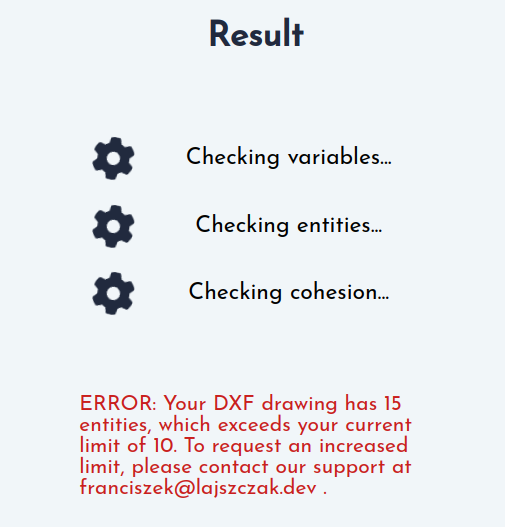

Limit error
Dxf debug report
Debug raport itself is a DXF file. It contains all entities from input dxf file and additional information such as error message in the bottom right corner of the report.
Every entity is grayed out accept problematic entity. Problematic entity is highlighted with signature color and is placed on DEBUG layer.
In the case when more than one entity is problematic all those entities are placed on DEBUG layer and are highlighted with signature color. For example: if there is cohesion error such as there are two separate graphs, both graphs are highlighted with different color.
